Last time:

  • ISPC

  • OpenMP and OpenACC

Today:

  1. Hiding latency

  2. Examples of HPC File Systems
    2.1 Summit File Systems

1. Hiding latency#

Throughout this course, we’ve discussed ways in which computer architecture and algorithms hide latency.

  • instruction-level parallelism

  • SMT/SIMT multi-threading

  • memory prefetch

  • organizing data structures for streaming access and cache reuse

  • tiling, etc.

But the reality is that file latency is vastly higher than memory.

using IJulia

html"""<iframe src="https://people.eecs.berkeley.edu/~rcs/research/interactive_latency.html" width="1200" height="700"></iframe>"""

Device

Bandwidth (GB/s)

Cost ($/TB)

Seek Latency (\(\mu\)s)

7200 RPM disk

0.3

30

>3000

SSD (SATA 3.0)

0.6

70-80

15-50

SSD/NVMe (PCIe-3 x4)

3

120-1000

10-20

DRAM DDR4

25

5000

0.1

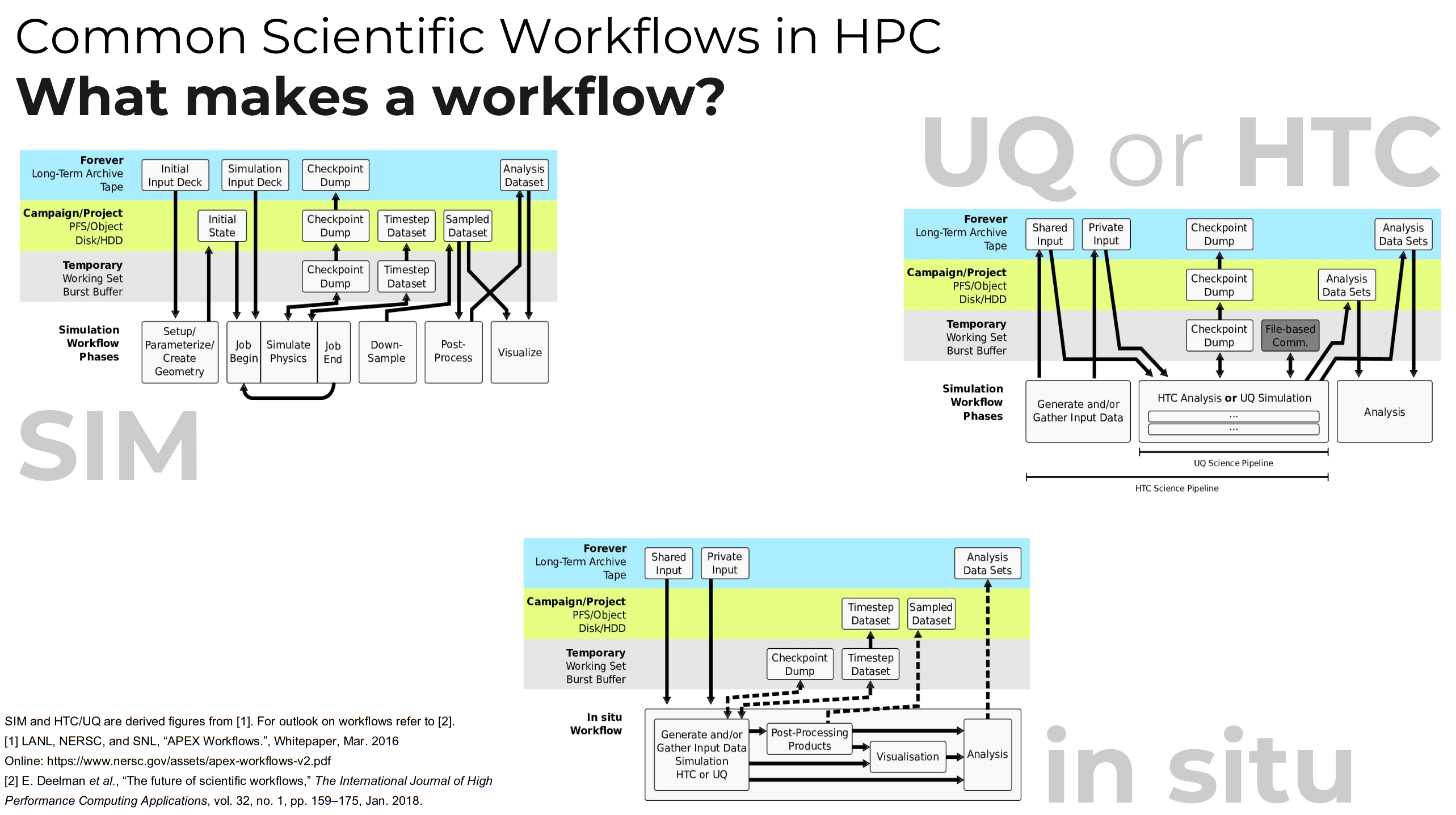

Scientific Workflows

Guess which one is one of the most data-intense application field?

ICON Example

The most used file formats are:

  • NetCDF (Network Common Data Form)

  • (parallel) HDF5

How much storage bandwidth does a simulation need?#

Example: NEK5000 (CFD application)

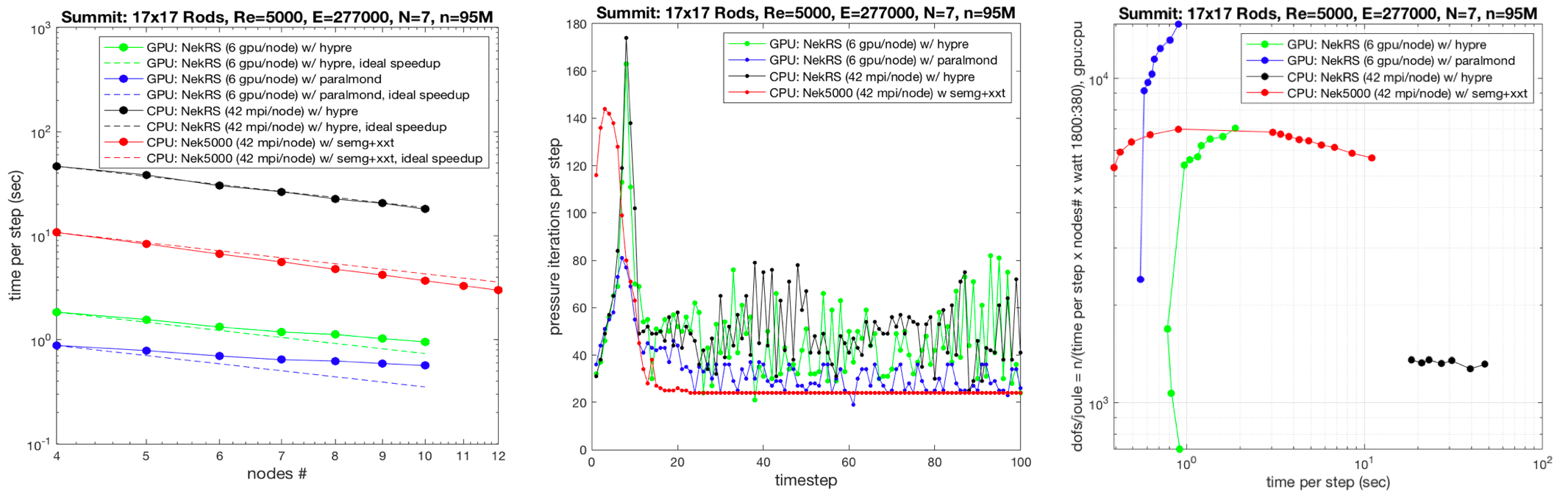

NEK5000 example of storage needed

2. Examples of HPC File Systems#

wall_clock_per_timestep = 0.6
dofs_per_node = 1800 * 1e4
MBps_per_node = dofs_per_node * 8 / wall_clock_per_timestep / 1e6
dofs = 95e6
MBps = dofs * 8 / wall_clock_per_timestep / 1e6

(MBps_per_node, MBps)

(240.0, 1266.6666666666667)

seconds_per_day = 24 * 60 * 60
TB_per_day = MBps * seconds_per_day / 1e6 # TB
TB_per_day

109.44

What if all nodes in a cluster used storage at this rate?

MBps_per_node * 4600 / 1e6 # TB/s

1.104

TB_per_day * 4600 / 8 / 1e3 # PB/day

62.928

2.1 Summit File Systems#

  • Capacity: 250 PB

  • Theoretical Bandwidth: 2.5 TB/s
